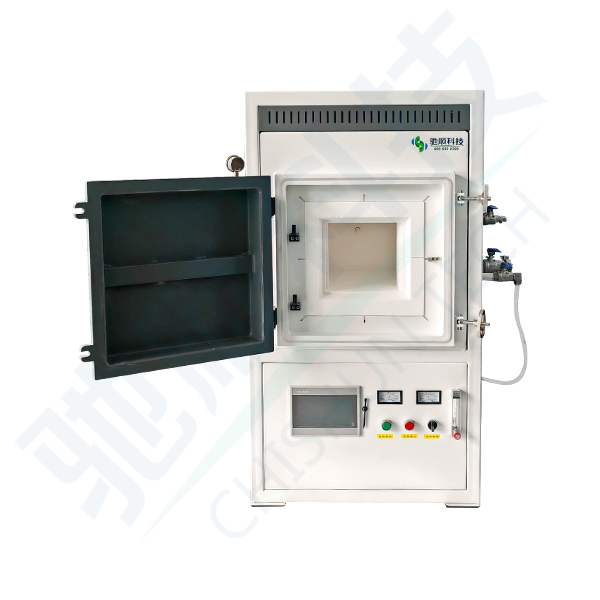

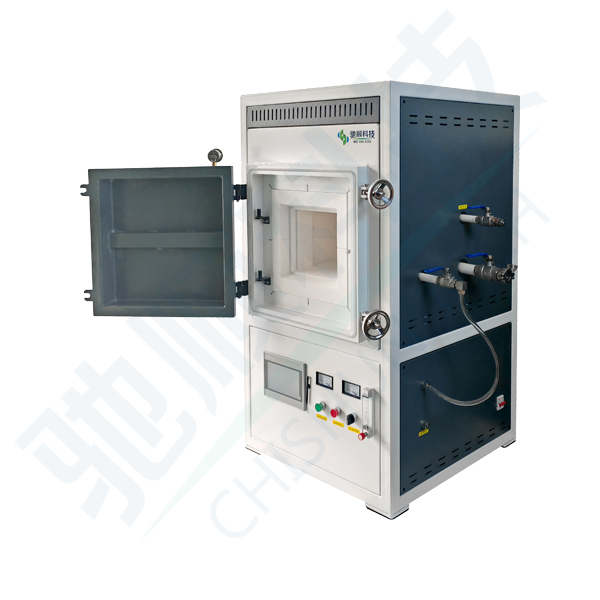

Name: BAF1200 Amtosphere Furnace
Model: BAF1200
Introduction: The furnace body of the 1200C chamber atmosphere furnace has a flange-type sealed structure. During the heat treatment of materials, protective gases such as nitrogen, argon, and oxygen can be introduced into the heat treatment of carbon materials, metal materials, and biomass materials. It can also be used for lithium Sintering of battery ternary materials.
氣氛保護陶瓷材料納米材料
  • Parameter
  • Video
  • Test case
  • Clients

The furnace body of the 1200C chamber atmosphere furnace has a flange-type sealed structure. During the heat treatment of materials, protective gases such as nitrogen, argon, and oxygen can be introduced into the heat treatment of carbon materials, metal materials, and biomass materials. It can also be used for lithium Sintering of battery ternary materials.


Furnace shell

1The shell is made of metal Q235 low-carbon steel, and the surface is electrostatically resistant and anti- corrosion.

2 Sturdy metal tank shell structure with low furnace surface temperature

3Furnace door with flange type sealing structure and manual screw compression with side door way for easier operating


Refractory material

Multi-layer insulation design, composed of lightweight alumina ceramic fiber and other high-quality insulation board heat shielding backing, which does not contain asbestos components, low heat loss and low energy consumption


Heating system

1High-quality heating element installed on both sides of the furnace safely and firmly with free heat radiation heating in the furnace chamber and energy saving and high efficiency for long service life

2Heating element on both sides (left and right) for good uniformity in the furnace


Temperature Control Panel

1PID with SSR control mode for precise temperature control

2International standard thermocouple with long service life

3The studio chamber size can be selected up to 1000L, suitable for factories production


Program Controller

1Advanced controllers for complex process needs

2Simple and direct operation, flexible programming

3Programmable 30 program segments for a single curve

4Over temperature and fault alarm with automatic safety protection


Vacuum Atmosphere Function

1The furnace chamber has adjustable air inlet and air outlet port, which can be passed into the protective gas

2 High-performance rotary vane vacuum pump, which can obtain a vacuum degree of 20000pa

3Optional air circuit control unit, the control unit can choose 1-3 adjustable gas float meter


Specifications

Model

BAF1200-I

BAF1200-II

BAF1200-III

BAF1200-IV

BAF1200-V

BAF1200-VI

Max temperature

1200

Working temperature

1100

Chamber size

150*150*150mm

200*300*120mm

200*300*200mm

250*300*250mm

300*500*200mm

300*500*300mm

Heating element

HRE alloy resistance wire

Termocouple

N-typethermocouple

Heating rate

1-25°C/min

Temp.Precision

±1°C

Chamber material

Polycrystalline inorganic alumina ceramic fiber material prepared by wet vacuum filtration molding

Temperature

controller

Intelligent microcomputer PID temperature control instrument, SSR control, PID parameter self-tuning function; programmable 4 groups of 8 program segments, program temperature rise, program heat preservation, program cooling

Safety protection

The equipment is equipped with a circuit breaker, which will automatically pop open in case of short circuit leakage, which can protect the safety of equipment and operators

Standard packing

1. Furnace body 1 set     2. Temperature controller 1 set      3. Power cord 3 meters     4. Thermocouple 1 set

5. Manual 1 copy           6. Crucible pliers 1 set                   7. High temperature gloves 1 pair

Optional

Paperless recorder, alumina crucible, three-way gas control system, rotary vane vacuum pump
