Name: BM2 Planetary Ball Mill
Model: BM2
Introduction: BM2 tabletop planetary ball mill is equipped with four ball grinding tanks on the same turntable. When the turntable rotates, the ball grinding tank rotates around the turntable shaft for planetary motion.
4*500ml650rpm
  • Parameter
  • Video
  • Test case
  • Clients

BM2 desktop planetary ball mill is a necessary device for mixing, fine grinding, sample preparation, nano-material dispersion, new product development and small batch production of high-tech materials. The product has the advantages of small size, full function, high efficiency and low noise. it is an ideal equipment for scientific research institutions, colleges and universities and enterprise laboratories to obtain microparticle research samples (four samples can be obtained at the same time in each experiment). The sample can be ground in vacuum. The products are widely used in geology, mineral resources, metallurgy, electronics, building materials, ceramics, chemical, light industry, medicine, beauty, environmental protection and other departments.


BM2 tabletop planetary ball mill is equipped with four ball grinding tanks on the same turntable. When the turntable rotates, the ball grinding tank rotates around the turntable shaft for planetary motion. The grinding ball in the ball mill tank grinds and mixes the sample in high-speed motion. The product can be ground by dry and wet methods and mixed with products with different particle sizes and materials, and the minimum particle size of the grinding product can be up to 0.1micron (i.e. 1.0X10mm4).


Specifications

Applications

Electronic materials, soil, aerospace materials, batteries, ceramics, minerals, metallurgy, etc.

Applicable samples

Soft, hard, brittle, fibrous, dry or wet

Max. feed volume

2/3 of the of the grinding jar

Vacuum grinding

optional

Feed size

soil≤10mm other≤3mm

Final fineness

0.1μm

Alternate timing

1-9999min

Rotation

650rpm

Grinding jar

250ml、500ml

Vacuum jar

250ml

Certificate

ULCE

Power

220V  0.75kw  50~60Hz

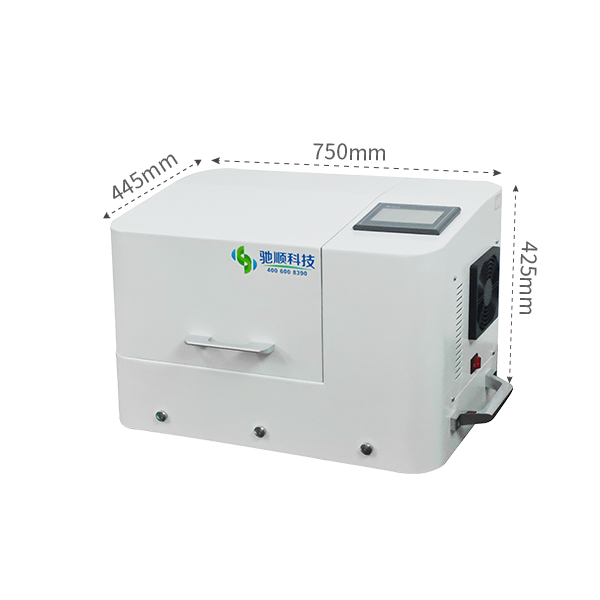

Packaging Details

68*42*40cm 96KG

Data storage

Yes

Data monitoring

Real time monitoring of operational status, supporting fault alarms

Programmable operation

5 sets operation steps supporting edit/delete

Control mode

HMItouch screen, Multiple operation modes (forward and reverse alternating operation, interval operation, timed operation)

Jar materials

Stainless steel, vacuum, agate, zirconia, alumina, PTFE, nylon, tungsten carbideetc.

Competitive Advantage

1Factory direct delivery

2Quality assurance

3Best price

4Compact in size

5Complete specifications

6Service Assurance


Disclaimer
The content on this website (including product description, images, parameters, etc.) is for reference only and does not constitute a legal offer or commitment. We will keep updating and please be noted that some may not match the actual situation due to the delay.
